▶▶▶Description:
Helical-worm gearmotors
Due to their design and from being combined with a helical gear stage, the helical-worm gearmotors S..DR.. have particularly high efficiency. They are also extremely low-noise and thus avoid high noise emission levels.
Low-noise continuous operation: gear unit combination optimized with respect to efficiency
S series Helical-worm gearmotors
✪●✪
Product size&Technical data |
|
|
|
|
| Gear unit size | S37 | S47 | S57 | S67 |
| Motor Power(KW) | 0.12-3 | 0.12-3 | 0.12-7.5 | 0.12-7.5 |
| gear ratio range | 3.98-106.38 | 4.64-131.87 | 4.69-145.14 | 5.2-144.79 |
| Mamax Gear unit(Nm) | 200 | 400 | 600 | 820 |
| | | | | |
| Gear unit size | S77 | S87 | S97 | |
| Motor Power(KW) | 0.12-15 | 0.25-30 | 0.75-37 | |
| gear ratio range | 7.24-192.18 | 7.21-197.37 | 7.54-176.05 | |
| Mamax Gear unit(Nm) | 1550 | 2700 | 4300 | |
▶▶▶Features
Helical-worm gear units
•Helical-worm combinations with significantly better efficiency than single helical-worm gear units
•Very low-noise operation
•Available variants:
•Foot- or flange-mounted
•B5 or B14 flange-mounted
•Solid or hollow shaft
•Hollow shaft with keyed connection, shrink disk, splined hollow shaft, or TorqLOC®

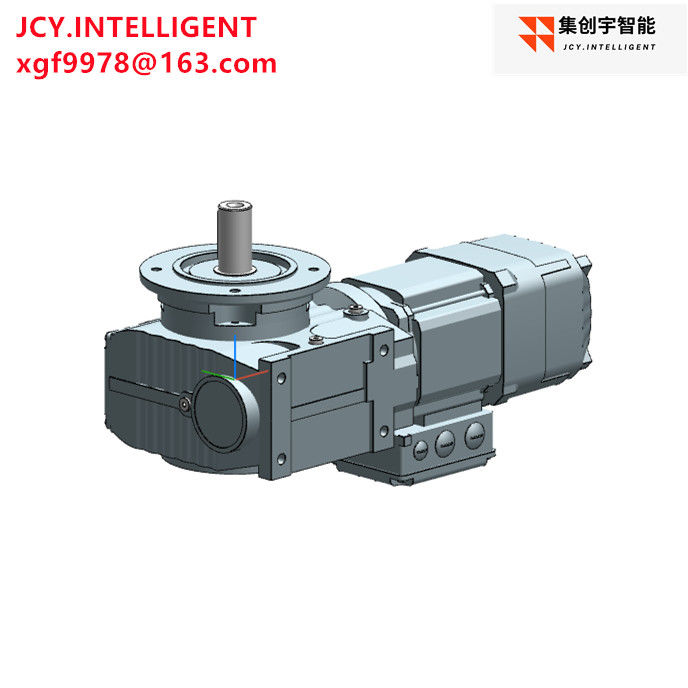

| Catalog designation | SF67 DRN80MK4/BE1 |
| Product | Helical-worm gearmotors S..DRN.. (IE3) |
| Product data | |
| Speed 50Hz [r/min] | 1435 / 9.1 |
| Total ratio [i] | 158,45 |
| Ma max [Nm] | 520 |
| Output torque 50Hz [Nm] | 375 |
| Service factor SEW-FB | 1,40 |
| Mounting position | M6A |
| ISO code | CLP 680 |
| Lubricant type | Miner.Oil |
| Lubricant volume [l] | 2,60 |
| Motor power [kW] | 0.55 |
| Motor frequency [Hz] | 50 |
| Cyclic duration factor S1-S10 | S1 |
| Voltage range [V] | 220-240 delta/380-415 star |
| Nominal current [A] | 2,30 / 1,32 |
| cos phi | 0,75 |
| Thermal cl.[°C]/Enclosure[IP] | 155(F) / 55 |
| International efficiency class | IE3 |
| Efficiency (100% Pn) [%] | 80,8 |
| China Efficiency Class | Grade 3 |
| Ambient temperature min. [°C] | -20 |
| Ambient temperature max. [°C] | 40 |
| Brake voltage [V]/-torque [Nm] | 400 AC / 7 |
| Brake voltage range [V] | 380-460 AC |
| Brake rectifier nameplate | BG1.5 |
| Nameplate | English |
| Weight | 46.00 kg |
▶▶▶ SEW reducer S series Helical-worm gearmotors
out speed (rpm): 0.1rpm - 397 rpm
Torque range(Nm)/Power range(KW): 200Nm - 4,200 Nm/0.12KW - 37 kW
SIZE:S37,S47,S57,S67,S77,S87,S97
SA37,SA47,SA57,SA67,SA77,SA87,SA97
SF37,SF47,SF57,SF67,SF77,SF87,SF9
SAF37,SAF47,SAF57,SAF67,SAF77,SAF87,SAF97
SAT37,SAT47,SAT57,SAT67,SAT77,SAT87,SAT97
▶▶▶Areas of application
◆Drives in theater applications ◆Adjustment drives ◆Presses
◆Rotary tables ◆Corner transfer units
▶▶▶FAQ
Q: Can you print other colors?
A:Yes. Customized color can be printed on the gear motor according to your requirements.
Q: Can we buy 1 pc of each item for quality testing?
A: Yes, we are glad to accept trial order for quality testing.
Q: Is that factory price?
A:Yes. We assure you all prices are based on factory.
Q: What is the life span? what is the guarantee
A:The lifespan of gear motor can reach 10-20 years depending on different working conditions .The guarantee time is
one year after delivery.
