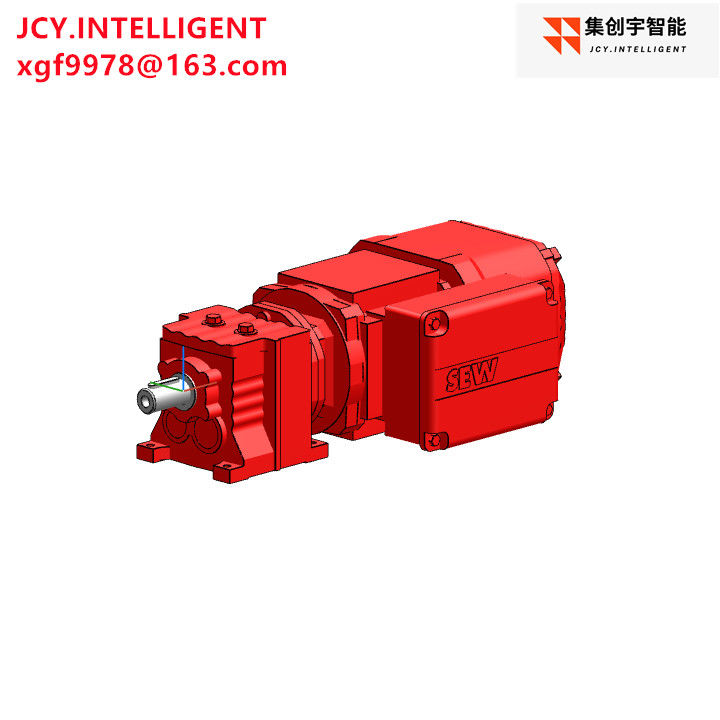

40NM Bevel Helical Gear Unit Box SEW DRN71MS4/BE03
  • 40NM Bevel Helical Gear Unit Box SEW DRN71MS4/BE03
  • 40NM Bevel Helical Gear Unit Box SEW DRN71MS4/BE03
  • 40NM Bevel Helical Gear Unit Box SEW DRN71MS4/BE03
40NM Bevel Helical Gear Unit Box SEW DRN71MS4/BE03

40NM Bevel Helical Gear Unit Box SEW DRN71MS4/BE03

Place of Origin CHINA
Brand Name SEW
Certification CE/3C
Model Number R07 DRN71MS4/BE03
Product Details
Catalog Designation:
R07 DRN71MS4/BE03
Ma Max [Nm:
50
Speed 50Hz [r/min:
0
Motor Power [kW:
0.25
Brake Voltage [V:
9
Frequency [Hz:
9
Highlight:

DRN71MS4 Helical Gear Unit

,

SEW Helical Gear Unit

,

SEW bevel helical gear box

Payment & Shipping Terms
Minimum Order Quantity
1
Price
Discussed
Packaging Details
Standard wooden packing
Delivery Time
3-5 WORK DAYS
Payment Terms
T/T, Western Union
Supply Ability
1000000 pieces/year
Product Description

▶▶▶Description:

 Helical gearmotors
Covering 6 specifications of single-stage reducers and 14 specifications of 2-stage and 3-stage reducers, the R series of helical gear reduction motors perfectly meet the requirements of power and installation space.


R series helical gearmotors hard surface reducer
✪●✪
Product size&Technical data
Gear unit size R17 R27 R37 R47 R57 R67 R77
Motor Power(KW) 0.09-0.75 0.12-3 0.12-3 0.12-5.5 0.12-7.5 0.12-7.5 0.18-11
gear ratio range 3.83-81.64 3.37-135.09 3.41-134.82 3.83-176.88 4.59-186.89 4.29-199.81 5.31-195.24
Mamax Gear unit(Nm) 85 130 200 300 450 600 820
　 　 　 　 　 　 　 　



▶▶▶Features

R series (multi-stage)
•Optimum ratio between performance and space requirements thanks to 15 sizes
•Finely stepped gear unit ratios up to i = 289.74; or i = 27,001 for double gear units
•Available in foot or flange-mounted design
•Also available with reduced backlash



40NM Bevel Helical Gear Unit Box SEW DRN71MS4/BE03 0

Product data:

Catalog designation R07 DRN71MS4/BE03
Product Helical gearmotors R..DRN.. (IE3)
Product data 　
Speed 50Hz [r/min] 1405 / 60
Total ratio [i] 23,32
Ma max [Nm] 50
Output torque 50Hz [Nm] 40
Service factor SEW-FB 1,25
Mounting position M3
ISO code CLP 220
Lubricant type Miner.Oil
Lubricant volume [l] 0,20
Motor power [kW] 0.25
Motor frequency [Hz] 50
Cyclic duration factor S1-S10 S1
Voltage range [V] 220-240 delta/380-415 star
Nominal current [A] 1,26 / 0,72
cos phi 0,66
Thermal cl.[°C]/Enclosure[IP] 155(F) / 55
International efficiency class IE3
Efficiency (100% Pn) [%] 73,5
Design specification IEC 60034
K.V.A.code H
China Efficiency Class Grade 3
Ambient temperature min. [°C] -20
Ambient temperature max. [°C] 40
Nameplate English
Weight 9.00 kg


▶▶▶Areas of application
RX series (single-stage)
◆Roller conveyors ◆Belt conveyors ◆Chain conveyors
R series (two-stage and three-stage)
◆Rotary tables ◆Pumps and fans ◆Waste water and sewage treatment plants
◆Fans ◆ Roller conveyors ◆ Belt conveyors
◆Chain conveyors ◆Corner transfer units
40NM Bevel Helical Gear Unit Box SEW DRN71MS4/BE03 1

▶▶▶ SEW reducer R series helical gear reducer

Gear transmission efficiency up to 98%, low vibration, low noise
Solid shaft, flange or footing mounting, can be used as the input stage part of the multi-stage reduction box

out speed (rpm): 0.05rpm - 1829rpm
Torque range(Nm)/Power range(KW): 50Nm - 18,000 Nm/ 0.09KW - 160 kW




▶▶▶FAQ


 Q: What documents are available?
A:A full range documents including structural drawings, packing list, installation manual and relative certificates can be provided. Moreover, customs declaration is provided. We provide one-stop service for you.
