▶▶▶Description:
R series helical gearmotors hard surface reducer
✪●✪
Product size&Technical data |
| Gear unit size |
R17 |
R27 |
R37 |
R47 |
R57 |
R67 |
R77 |
| Motor Power(KW) |
0.09-0.75 |
0.12-3 |
0.12-3 |
0.12-5.5 |
0.12-7.5 |
0.12-7.5 |
0.18-11 |
| gear ratio range |
3.83-81.64 |
3.37-135.09 |
3.41-134.82 |
3.83-176.88 |
4.59-186.89 |
4.29-199.81 |
5.31-195.24 |
| Mamax Gear unit(Nm) |
85 |
130 |
200 |
300 |
450 |
600 |
820 |
| |
|
|
|
|
|
|
|
| Gear unit size |
RX57 |
RX67 |
RX77 |
RX87 |
RX97 |
RX107 |
|
| Motor Power(KW) |
0.12-7.5 |
0.12-7.5 |
0.12-15 |
0.25-30 |
0.25-37 |
2.2-45 |
|
| gear ratio range |
1.3-5.5 |
1.4-6.07 |
1.42-8.00 |
1.39-8.65 |
1.42-8.23 |
1.44-6.63 |
|
| Mamax Gear unit(Nm) |
69 |
134 |
215 |
405 |
595 |
830 |
|
▶▶▶Features
R series (multi-stage)
•Optimum ratio between performance and space requirements thanks to 15 sizes
•Finely stepped gear unit ratios up to i = 289.74; or i = 27,001 for double gear units
•Available in foot or flange-mounted design
•Also available with reduced backlash
Product data:
| Catalog designation |

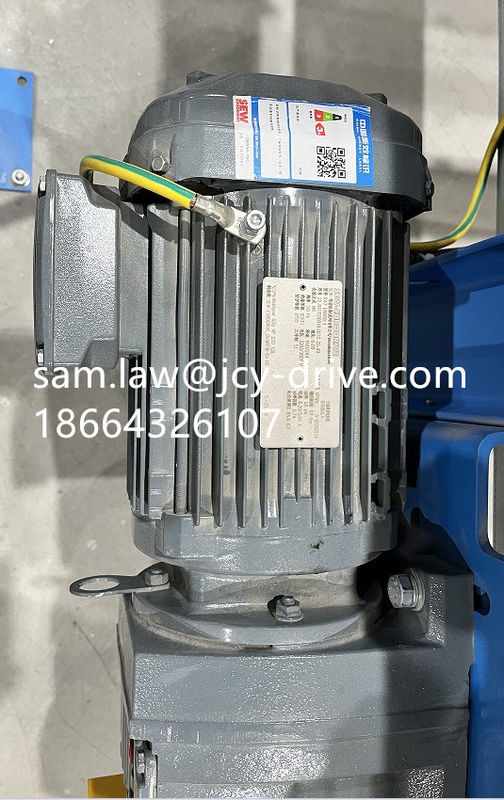

R77 DRN90S4/BE2 |
| Product |
Helical gearmotors R..DRN.. (IE3) |
| Product data |
|
| Speed 50Hz [r/min] |
1455 / 12 |
| Total ratio [i] |
121,42 |
| Ma max [Nm] |
820 |
| Output torque 50Hz [Nm] |
880 |
| Service factor SEW-FB |
0,95 |
| Mounting position |
M1 |
| ISO code |
CLP 220 |
| Lubricant type |
Miner.Oil |
| Lubricant volume [l] |
1,20 |
| Motor power [kW] |
1.1 |
| Motor frequency [Hz] |
50 |
| Cyclic duration factor S1-S10 |
S1 |
| Voltage range [V] |
220-230 delta/380-400 star |
| Nominal current [A] |
4,50 / 2,60 |
| cos phi |
0,73 |
| Thermal cl.[°C]/Enclosure[IP] |
155(F) / 55 |
| International efficiency class |
IE3 |
| Efficiency (100% Pn) [%] |
84,5 |
| Design specification |
IEC 60034 |
| K.V.A.code |
K |
| China Efficiency Class |
Grade 3 |
▶▶▶Areas of application
R series (two-stage and three-stage)
◆Rotary tables ◆Pumps and fans ◆Waste water and sewage treatment plants
◆Fans ◆ Roller conveyors ◆ Belt conveyors
◆Chain conveyors ◆Corner transfer units
▶▶▶ SEW reducer R series helical gear reducer
Gear transmission efficiency up to 98%, low vibration, low noise
Solid shaft, flange or footing mounting, can be used as the input stage part of the multi-stage reduction box
out speed (rpm): 0.05rpm - 1829rpm
Torque range(Nm)/Power range(KW): 50Nm - 18,000 Nm/ 0.09KW - 160 kW
SIZE:
R37,R47,R57,R67,R77,R87,R97,R107,R137,R147,R167
